The convenience of wireless, the power of Dante

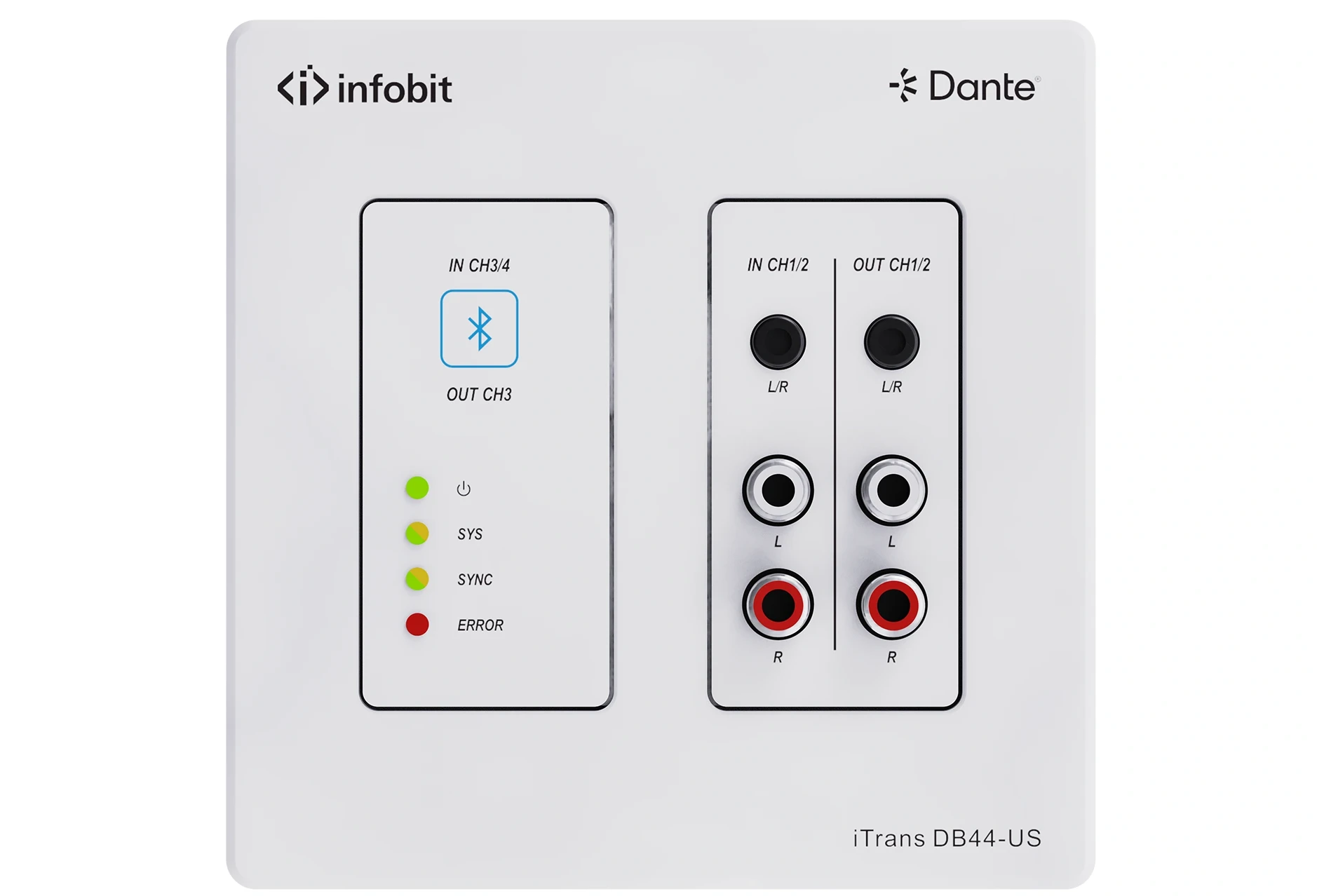

The iTrans DB44-US Bluetooth® wall plate lets you leverage the audio quality and connectivity of your Dante audio networks while being as easy to use as any Bluetooth® audio source. Simply pair the Bluetooth® adapter with your phone or PC for instant networked audio. Power is supplied via PoE, so there are no AC adapters to worry about.
Renaming matters
The iTrans DB44-US support renaming the Bluetooth ID, ensure never connect wrong devices for multi-room projects.
BLUETOOTH® and Dante
Wirelessly connect any PC or mobile device to your Dante audio network
No additional software or drivers required
Seamlessly migrate calls on mobile devices to
Dante-enabled conference room system
Channel routing is stored in the iTrans DB44-US
for consistent connections when used with
any Bluetooth-enabled device
| Name | 4×3 CH Dante Bluetooth Wallplate US 2-Gang Version |
| Input | (1) L+R unbalanced analog audio (1) 3.5mm unbalanced analog audio |
| Input Connector | (2) RCA jack, (1)3.5mm mini jack |
| Output | (1) L+R unbalanced analog audio (1) 3.5mm unbalanced analog audio |
| Output Connector | (2) RCA jack, (1) 3.5mm mini jack |
| Gain | 0 dB |
| Volume | Input: -12 ~ +18dB, 6dB per step Output: -60 ~ 0dB, 1dB per step |
| Max Level | Input: +12 dBu @ 0dB input gain Output: +12 dBu @ 0dB output gain |
| S/N Ratio | > 90dB @ Max Level (A-weighted) |
| Output Noise | < -79 dBu @ 0dB gain (A-weighted) |
| THD | < 0.05% at 0dBu,1kHz, 0dB gain (A-weighted) |
| Sample Rate | 44.1kHz or 48kHz |
| Control Methods | (1) Web-UI and Dante control (1) Pair button |
| Control Connector | (1) RJ45 (1) Bluetooth button |
| External Power Supply | PoE (IEEE 802.3af) |
| Operation Temperature | – 5℃ ~ + 55℃ (23℉ ~ 131℉) |
| Storage Temperature | – 25℃ ~ + 70℃ (-13℉ ~ 158℉) |
| Relative Humility | 90% RH or less (No condensation) |
| Power consumption | 4.22W (Max) |
| Dimension (W*H*D) | 115 x 115 x 42 mm |
| Net Weight | 265g |
